Fight Scene

Edit settings and run a battle test for front view and side view battles.



[Basic Settings]

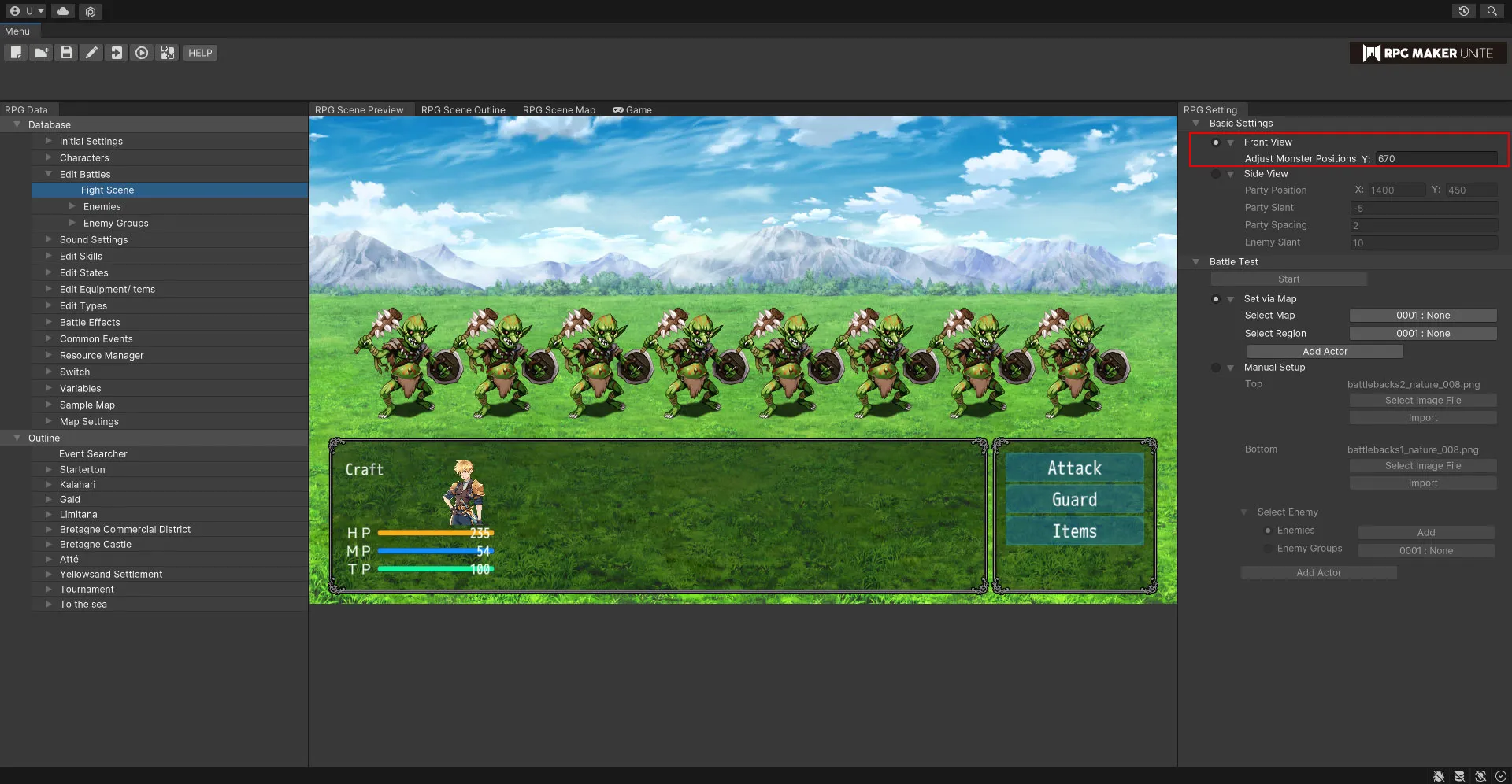

Front View

Enemies Appear Mid-Battle				Set whether additional enemies can appear in the middle of a battle.
Adjust Monster Positions				Adjust the position of enemies. You can only move them along the vertical axis.

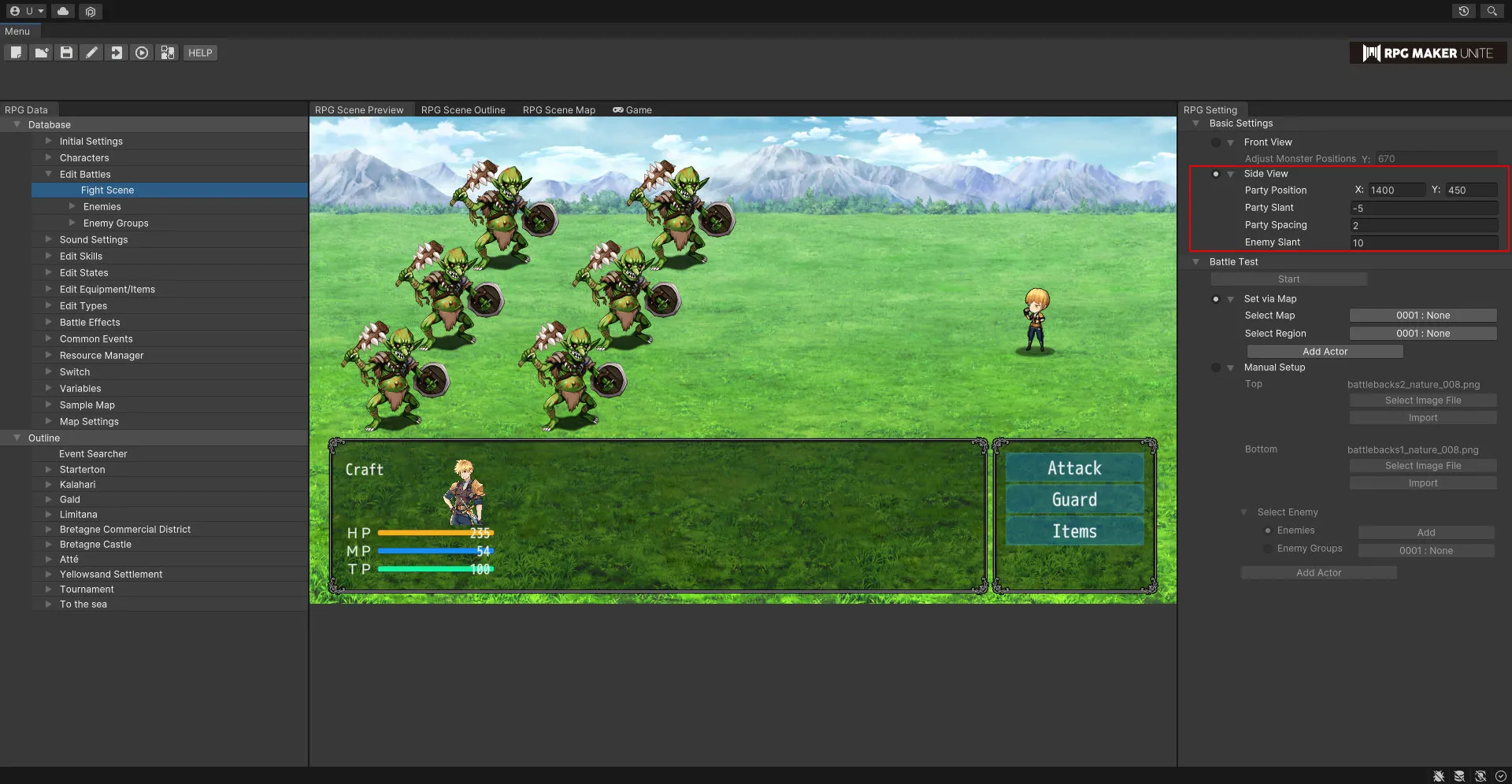

Side View

Party Position	Use the X and Y coordinates to set the party's position. This will affect the position of the entire party as a whole.
Party Slant	Set the slant of the party. This value can range from -10 to 10, with positive values slanting the party to the right, and negative values slanting it to the left.
Party Spacing	Set the spacing between the actors in the party. This value can range from 0 to 10 and applies to only the vertical spacing.
Enemy Slant	Set the slant of the enemies. This value can range from -10 to 10, with positive values slanting the enemies to the right, and negative values slanting them to the left.



[Battle Test]

Start Button

Starts a battle test.

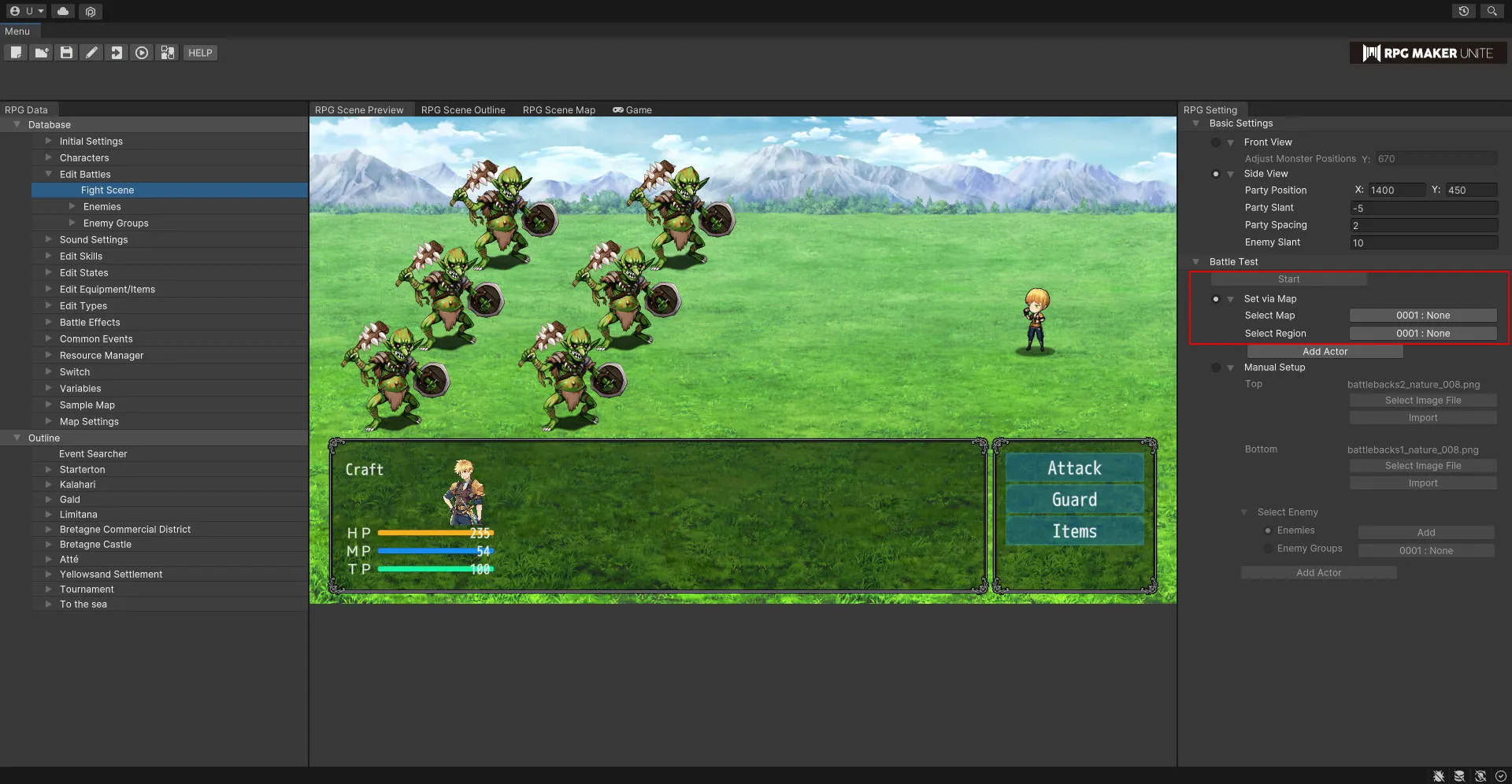

Set via Map

If you've chosen Set via Map, the battle test will use the enemies listed in the encounter settings for the selected map.

Select Map				Select a map.
Select Region				Select a region. You cannot select one if the chosen map does not have any regions set.

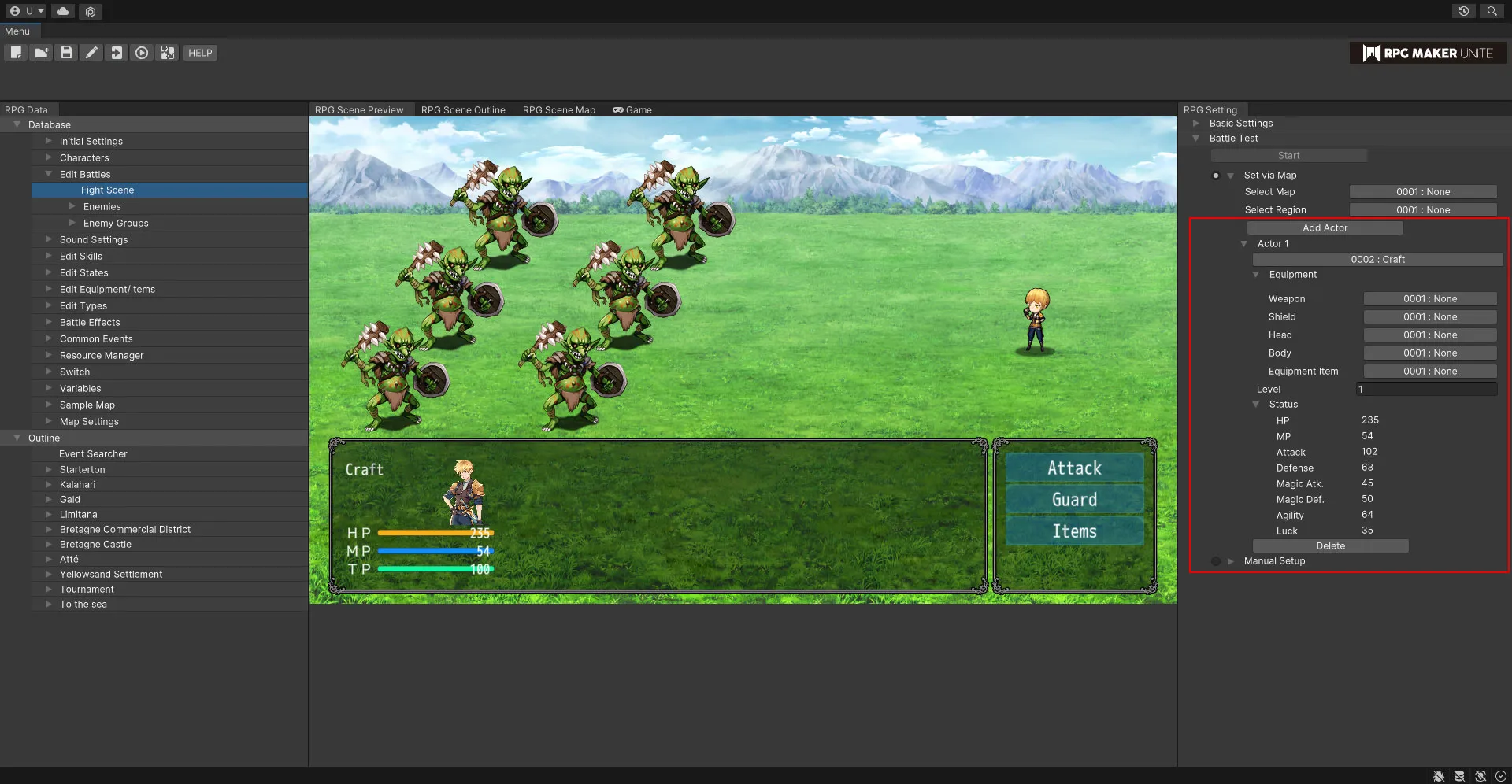

Actors

Add and edit the actors that will appear in the battle test.

Add Actor Button

Click this button to add another slot for an actor.

Actor				Select an actor. Choose from the characters listed in "Characters → Character Master List → Actor".
Level				Set the level of the selected actor. Their parameters will reflect what they would be at this level.
Equipment				Select a weapon, body armor, shield, head armor, and accessory to equip.
Delete Button				Delete an actor from the battle test.

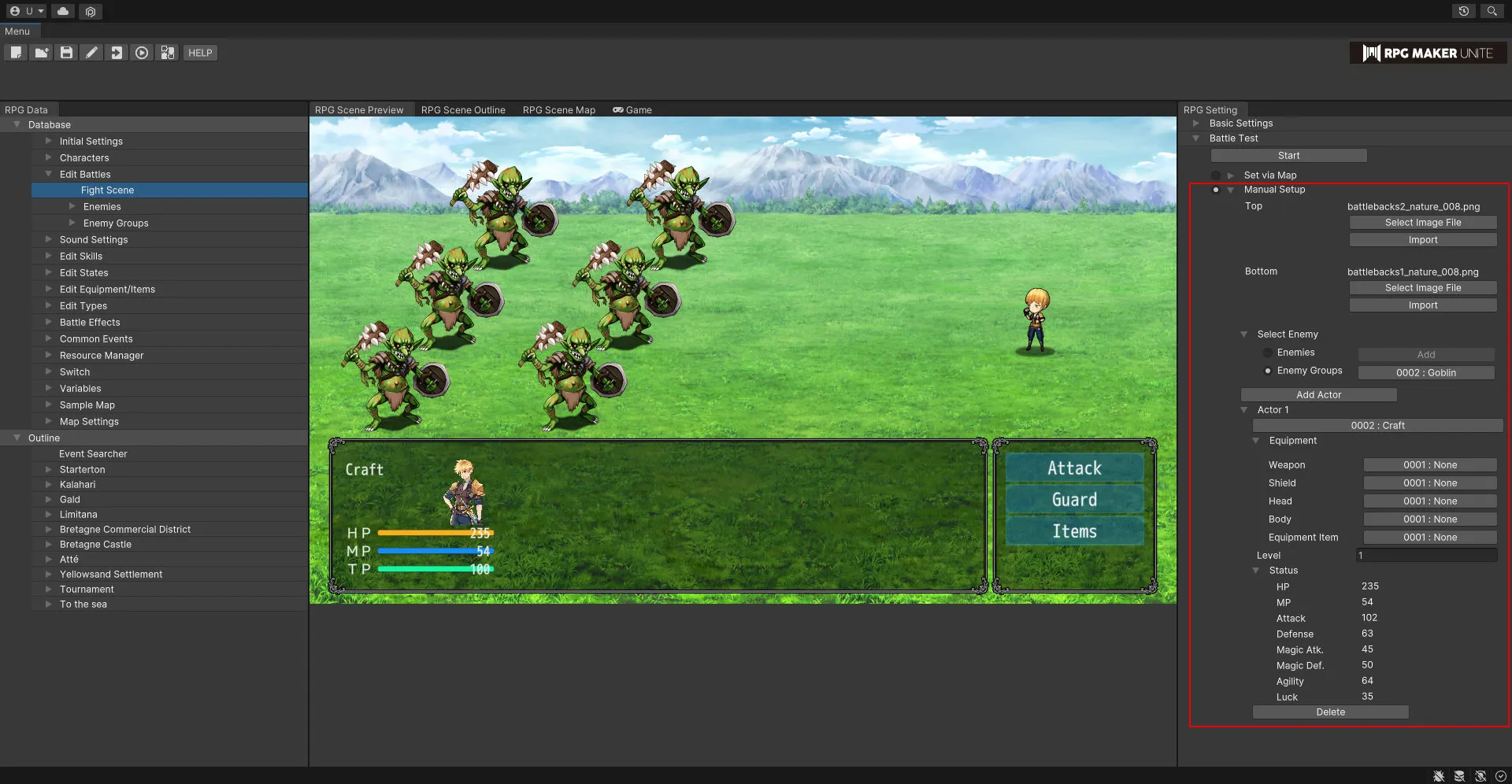

Manual Setup

Manual Setup does not pull from a map's Edit Battle settings and instead requires that the background and enemy characters are set separately.

Select Map

Battle Background

Set the top and bottom images that will make up the background.



Select Enemy

Select enemies individually or select an enemy group.

Enemy character

Add Enemy Button	Click this button to add another slot for an enemy.
Enemy	Select an enemy. The available enemies are taken from those listed in "Edit Battles → Enemies".
Delete	Delete an enemy from the battle test.



Enemy Groups

Enemy Groups

Select an enemy group. The available enemy groups are taken from those listed in "Edit Battles → Enemy Groups".

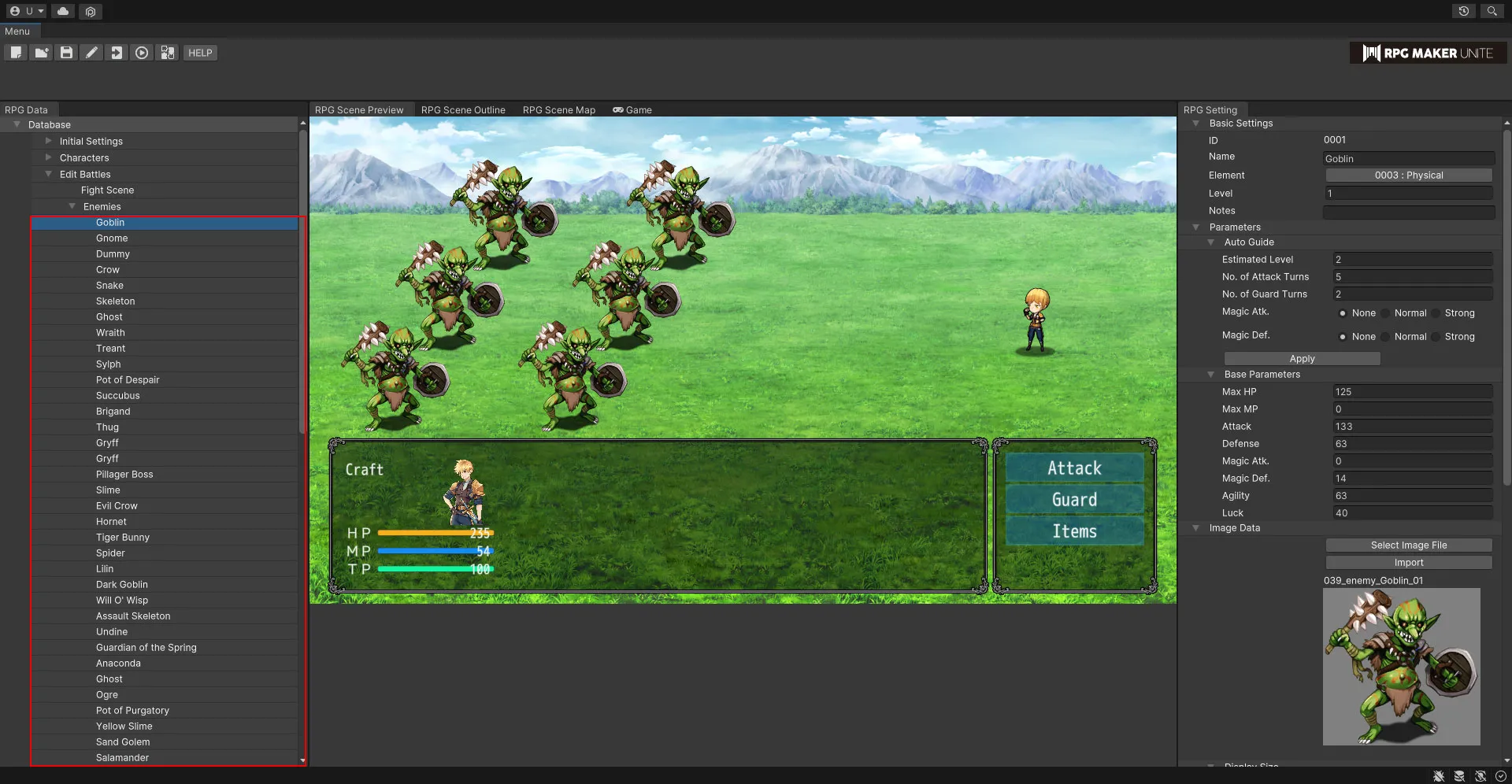

Enemies

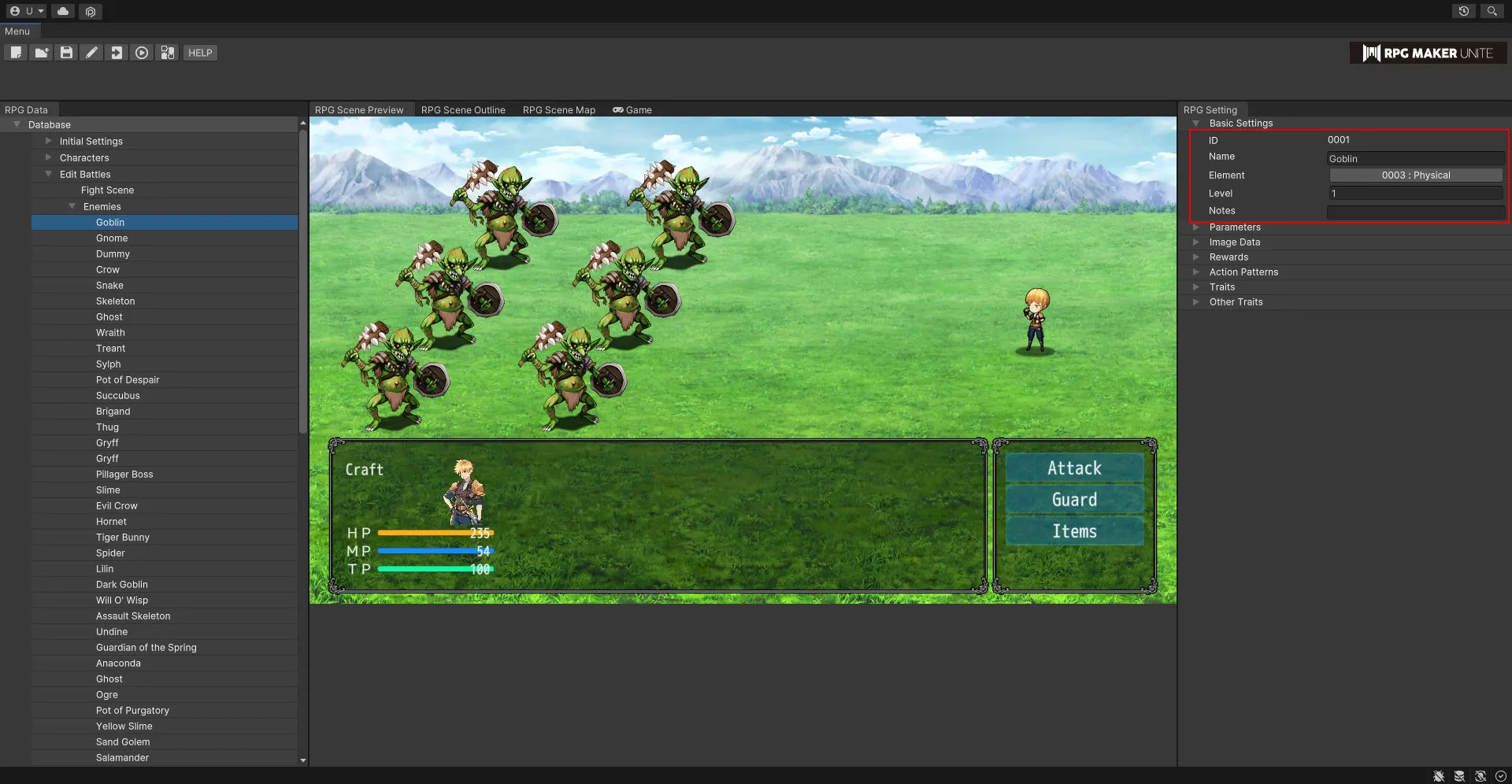

[Basic Settings]

Name				Enter a name.
Element				Select an element. The available elements are taken from those listed in "Edit Types".
Estimated Encounter Level				This is a note of what level an actor will be when they encounter the enemy. It can be helpful when adjusting the balance of a game.
Notes				A place for the creator of a game to leave notes. They will not be displayed in-game, so feel free to use it as you see fit.



[Parameters]

Edit the enemy's parameters.



Auto Guide

The auto guide will automatically calculate the enemy's stats. However, these values are only a suggestion from Unite and should be adjusted to fit the game being made.

Estimated Encounter Level	This is the estimated encounter level used by the auto guide. Change this value if you wish to make the enemy stronger than the estimated encounter level set in Basic Settings.
No. of Attack Turns	Set how many turns of attack this enemy can defeat a single actor in.
No. of Guard Turns	Set how many turns of attack a single actor can defeat this enemy in.
Magic Atk. Setting	"None" sets Magic Atk. to 0, "Normal" sets it to that of a standard actor, and "Strong" is the highest setting.
Magic Def. Setting	"None" sets Magic Def. to below that of a standard actor, "Normal" sets it to that of a standard actor, and "Strong" is the highest setting.
Apply Button	Clicking the Apply button will automatically input the base parameters, EXP, and Gold for the enemy.



Base Parameters

Set the Max HP, Max MP, Attack, Defense, Magic Atk., Magic Def., Agility, and Luck.

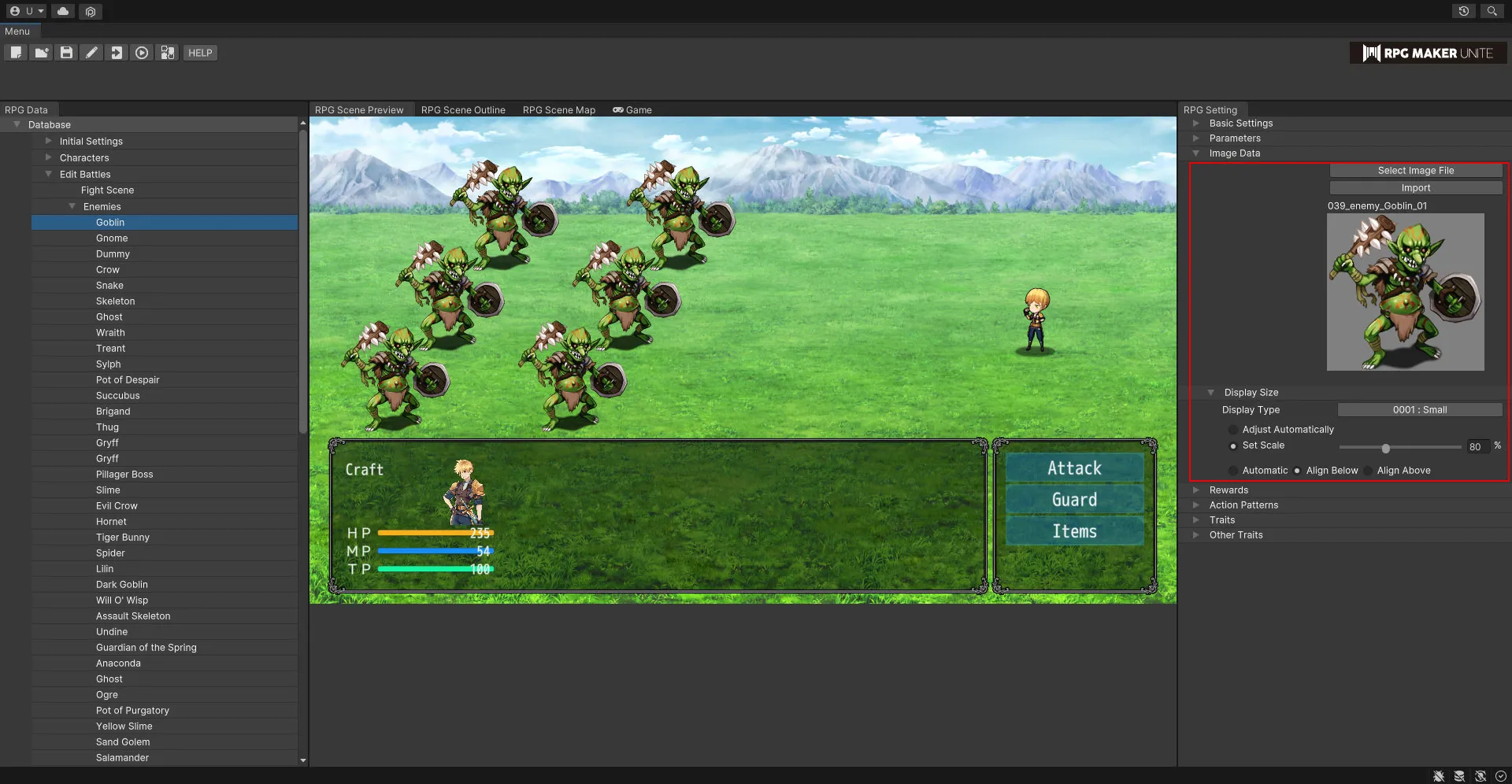

Image Data

Set an image for the enemy. Click "Select Image" to use one that has already been imported into Unite. To use a new image, click "Import" and select the desired image file.



Select Image

Choose from images that have already been imported.

Import

Import a new image.

Display Size

Display Type	Choose between "Small", "Large", and "Boss". The position of the enemy in battle will also change depending on the type. In a side view battle, a maximum of 6 small, 4 large, or 1 boss enemy can be shown at once.
Adjust Automatically	Adjust the size automatically according to the selected display type.
Set Scale	Set and adjust the scale of the enemy. This value can range from 10 to 200%. Please note that the position and number of enemies that can be displayed are based on the selected display type, regardless of the enemy's size.
Alignment	Set the vertical alignment of the enemy on the battle screen. Choose between "Automatic", "Align Below", and "Align Above". The alignment is also based on the display type.

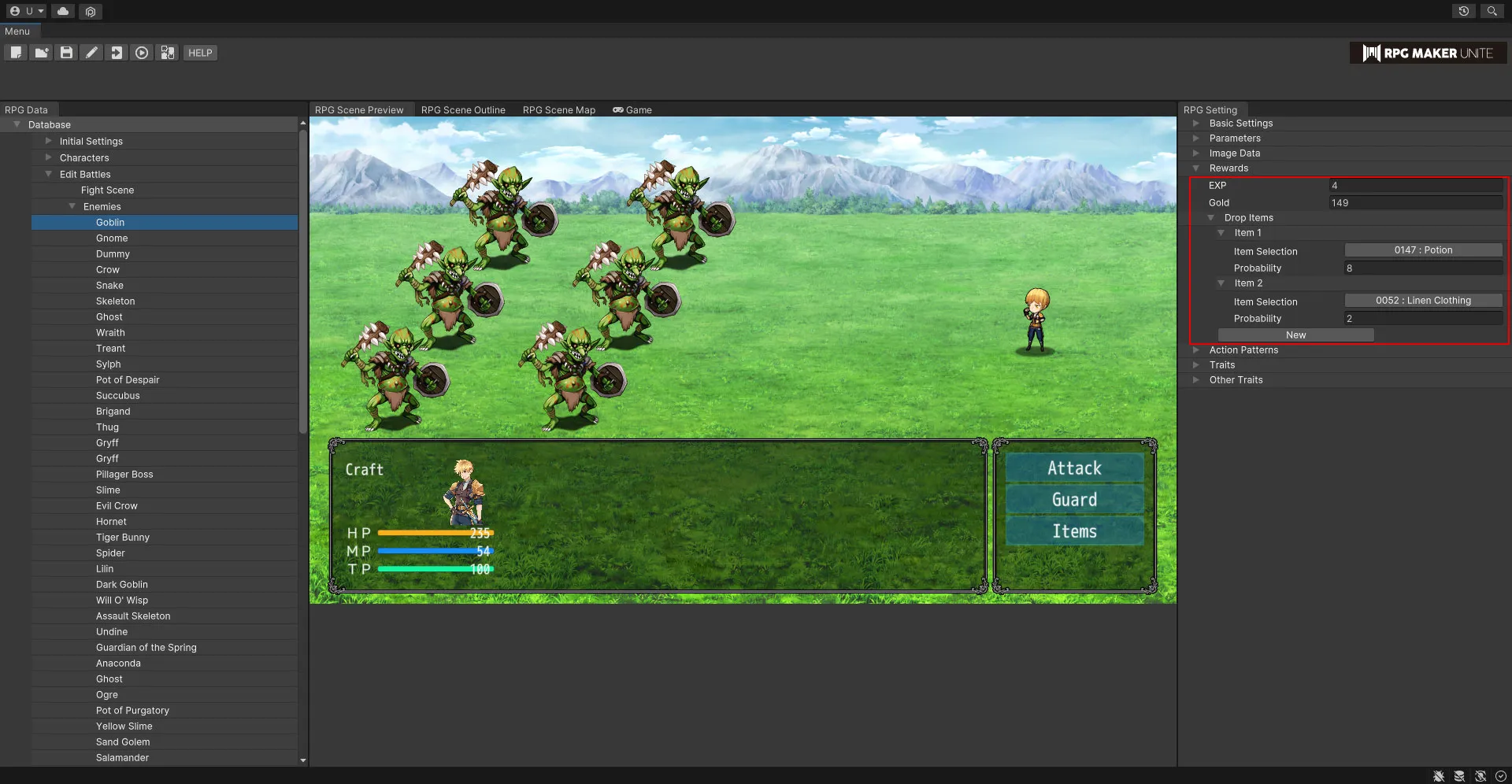

Rewards

Edit the rewards for when the party wins in battle against the enemy.

Exp

Set the amount of EXP gained. This value is the amount of EXP that the entire party will receive and is not the amount gained by each individual actor.

Gold

Set the amount of money that the party will receive when they win in battle against the enemy.

Drop Items

Add Item Button	Click this button to add another slot for a drop item.
Item Selection	Select an item. Choose from equipment and items listed in "Edit Equipment/Items".
Probability	Set the drop rate. A value of 100% will guarantee that the item will drop.

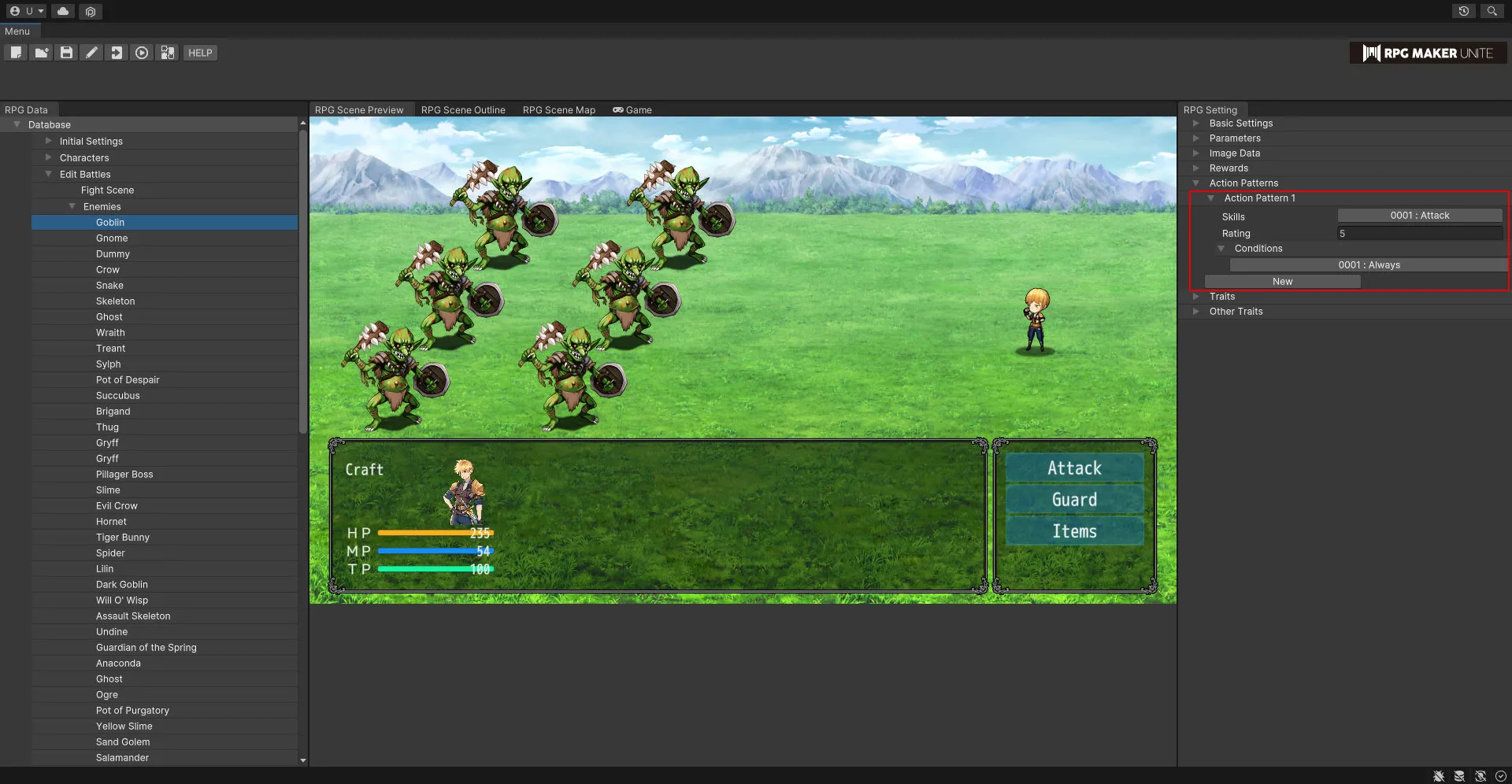

Action Patterns

Add Pattern Button

Click this button to add another slot for an action pattern.

Skills				Select a skill. It is also necessary to set one for standard attacks, and please note that if no skills are set here, the enemy will not perform any actions during encounters.
Rating				Set the likelihood that the action pattern will activate. This value can range from 1 to 9. Among all the patterns that have had their conditions met, only the ones with the highest rating or with ratings within 2 points of that can activate. Patterns with ratings that are 1 point away have 2/3 the chance of activating, while ones that are 2 points away have 1/3 the chance.

Conditions

Always	Please note that if there is not at least one skill with the condition of "Always", there may be instances where the enemy does not perform any actions.
Turns	The action pattern can only activate on the designated turns, which are calculated using A+B*X. For example, if A=1 and B=3, the condition will be met on turns 1, 4, 7, etc.
HP	The action pattern can only activate when the enemy's HP is within the designated range.
MP	The action pattern can only activate when the enemy's MP is within the designated range.
State	The action pattern can only activate when the designated state is applied to the enemy.
Party Level	The action pattern can only activate if at least one party member is at or above the designated level.
Switches	The action pattern can only activate when the designated switch is ON.

Deleting Action Patterns

Right-click on the added action pattern to open the Delete window, and click Delete to remove the pattern.

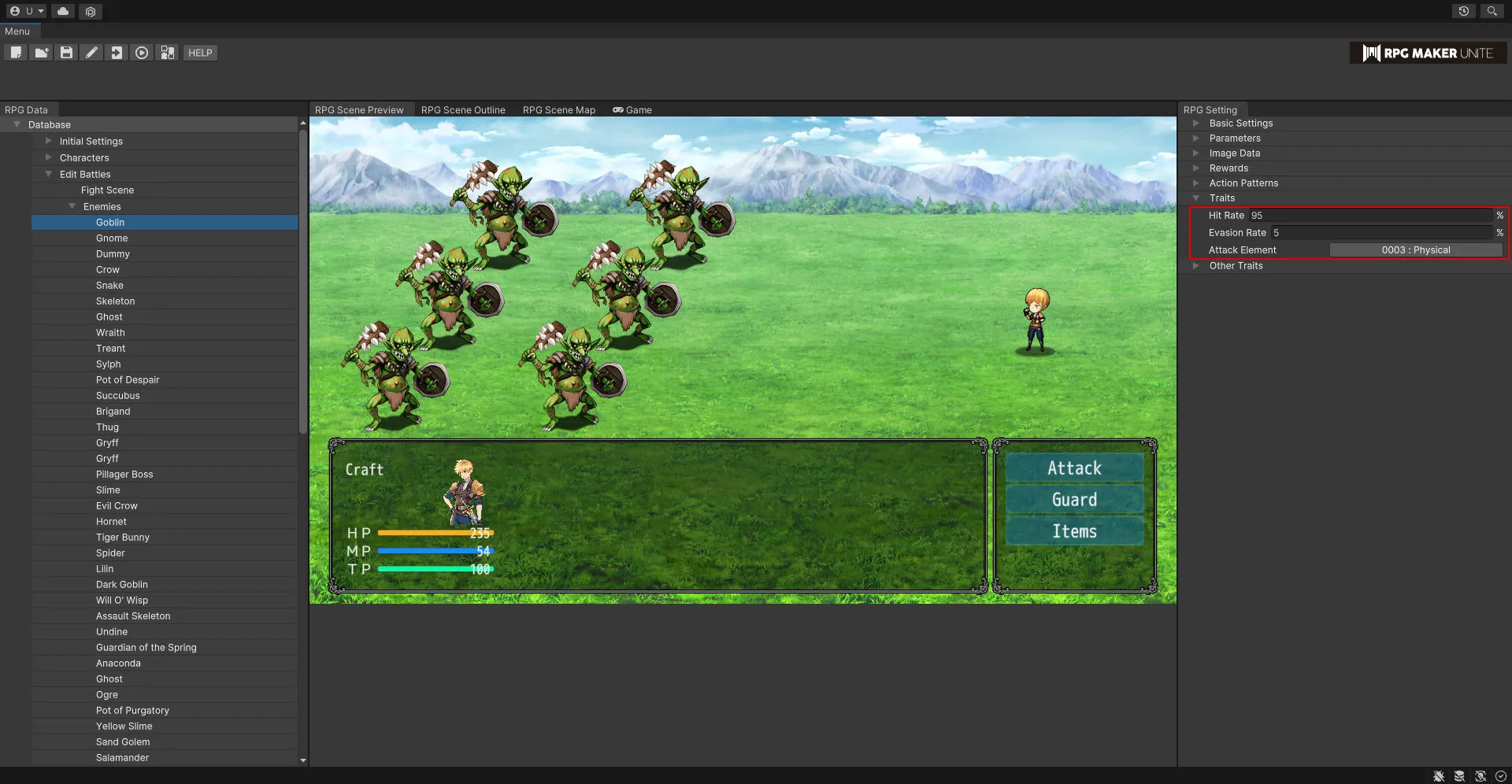

Traits

Hit Rate	The probability that a standard attack will hit. Setting this to 0% will completely prevent them from landing. A value of 95% is recommended, but whether an attack hits or not is dependent on the enemy's Evasion Rate, so even with a Hit Rate of 100%, attacks can still miss.
Evasion Rate	The probability of evading a physical attack. A value of 5% is recommended, but try values higher than 5% for enemies that are meant to easily evade attacks.
Attack Element	Set an element for when the enemy attacks. The available elements are taken from those listed in "Edit Types".



Other Traits

Add Trait Button			Click this button to add another slot for a trait.
Traits			Set traits by adjusting the "Category", "Item", "Effect", and "Numerical Input" sections.

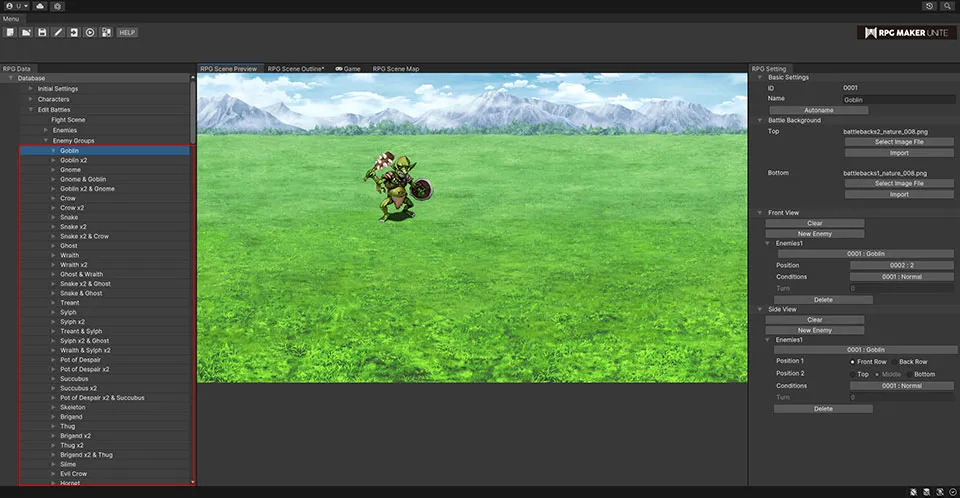

Enemy Groups

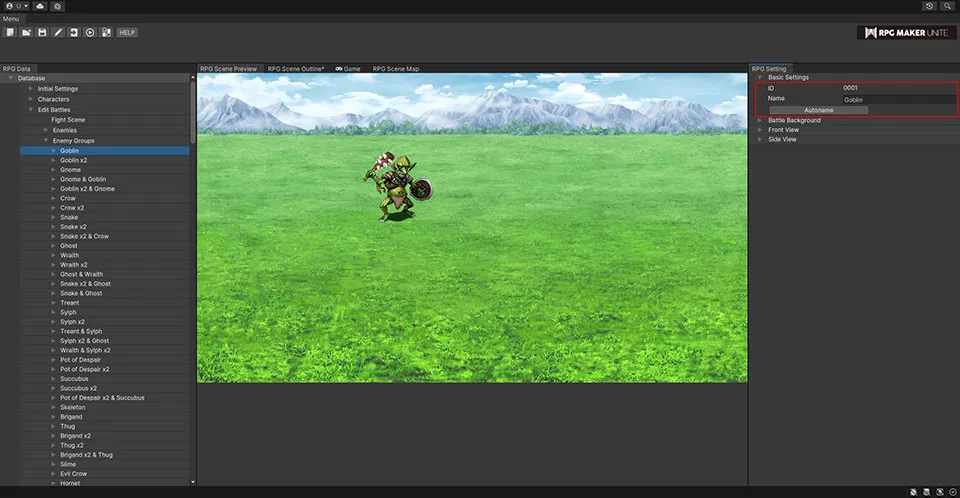

[Basic Settings]

Name			Enter a name.

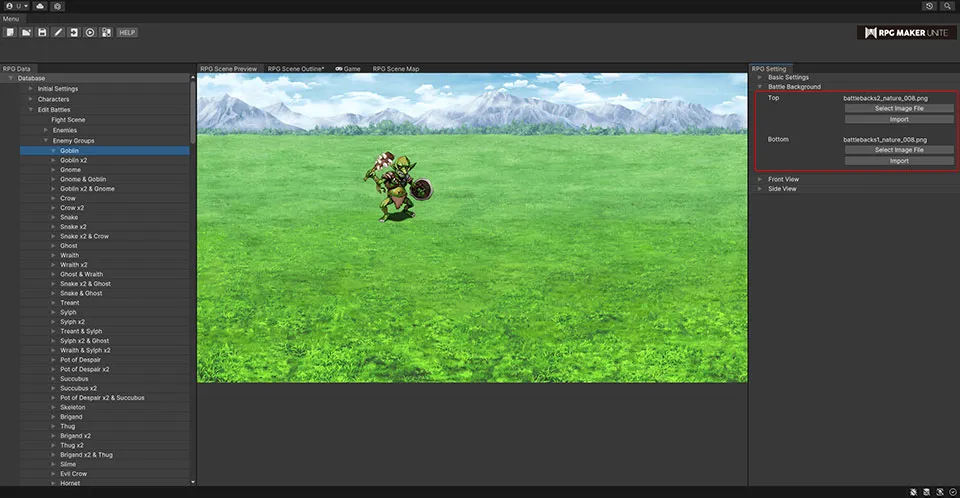

[Battle Background]

Set the battle background by selecting an image for both the top and bottom.

Top

Select Image				Choose from images that have already been imported.
Import				Import a new image.



Bottom

Select Image				Choose from images that have already been imported.
Import				Import a new image.

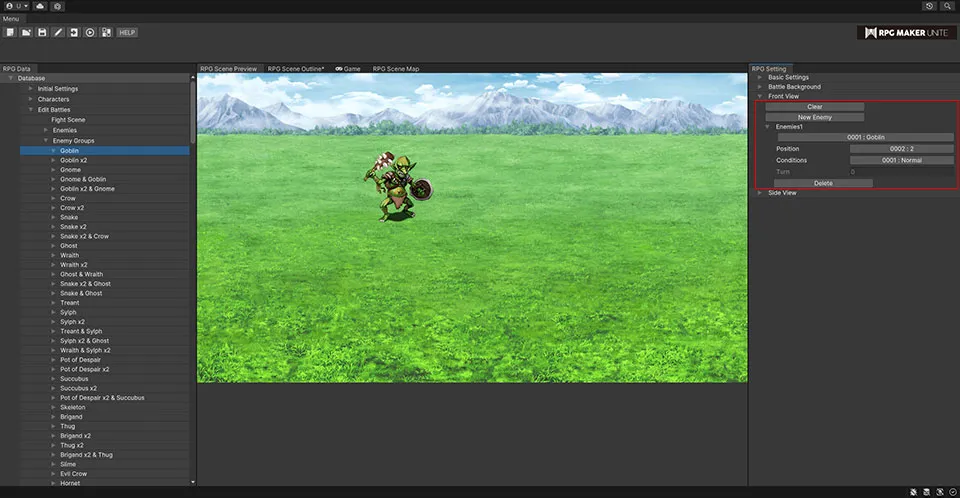

[Front View]

Clear Enemies

Remove all enemies from the enemy group.

New Enemy

Add another slot for an enemy. Enemies will be placed in the order they're added, starting from the back, so please adjust their positions accordingly.

Monster

Enemies	Select an enemy. The available enemies are taken from those listed in "Edit Battles → Enemies".
Position	This value can range from 1 to 8, and enemies will be arranged in order starting from the left side of the screen.
Conditions	Set the condition for when the enemy will appear during battle. Choose between "Normal", "Add Automatically", and "Turn". - "Normal" will have the enemy appear from the start of battle. - "Add Automatically" will cause the enemy to appear at the end of a turn after other enemies in the same battle have been defeated. If all the enemies that are currently in the battle are defeated, the "Add Automatically" condition will not activate. - "Turn" will cause the enemy to appear at the end of the designated turn. If all the enemies currently in the battle are defeated before the designated turn is reached, the "Turn" condition will not activate.
Turn	Set the number of turns when the "Turn" condition is selected.
Delete	Delete an enemy from the enemy group.

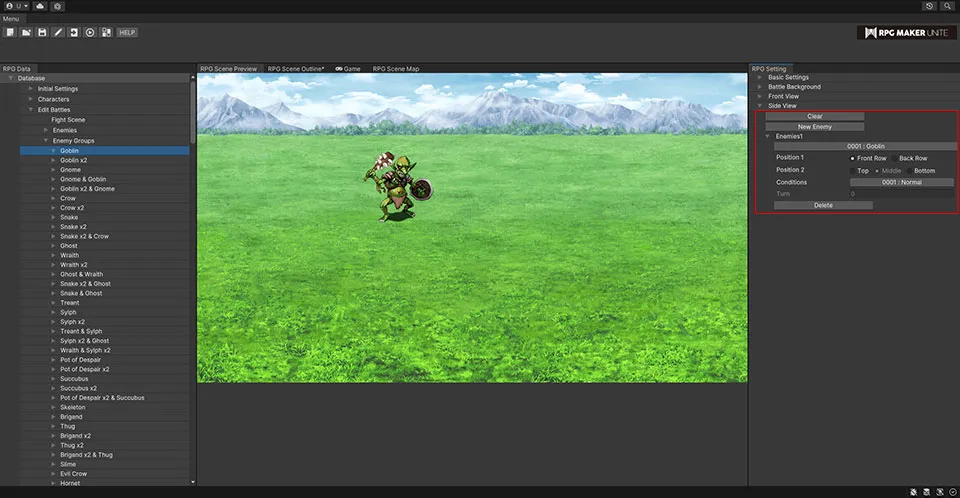

[Side View]

Clear Enemies

Remove all enemies from the enemy group.

New Enemy

Add another slot for an enemy.

Monster

Enemies	Select an enemy. The available enemies are taken from those listed in "Edit Battles → Enemies".
Position 1	Choose between "Front Row" and "Back Row". The "Front Row" is closer to the party.
Position 2	Choose between "Top", "Middle", and "Bottom".
Conditions	Set the condition for when the enemy will appear during battle. Choose between "Normal", "Add Automatically", and "Turn". -"Normal" will have the enemy appear from the start of battle. - "Add Automatically" will cause the enemy to appear at the end of a turn after other enemies in the same battle have been defeated. If all the enemies that are currently in the battle are defeated, the "Add Automatically" condition will not activate. - "Turn" will cause the enemy to appear at the end of the designated turn. If all the enemies currently in the battle are defeated before the designated turn is reached, the "Turn" condition will not activate.
Turn	Set the number of turns when the "Turn" condition is selected.
Deletion	Delete an enemy from the enemy group.

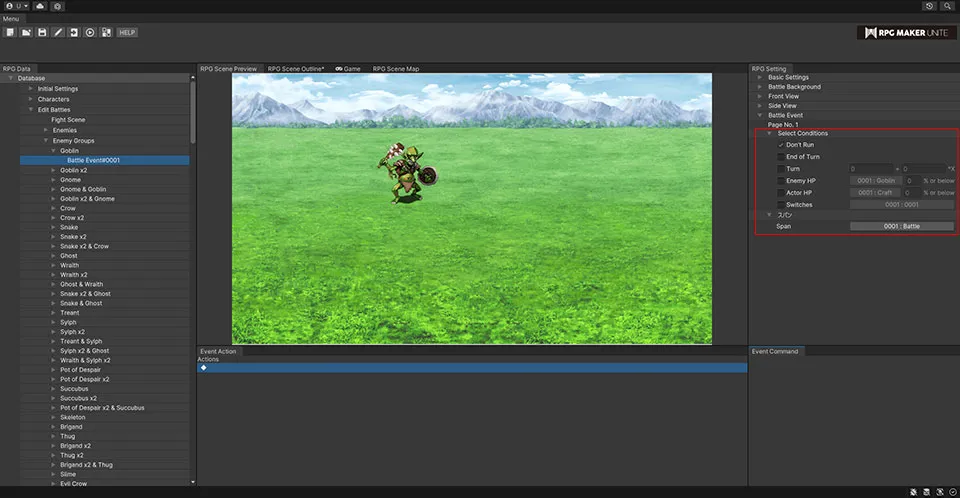

[Battle Event]

Select Conditions

Don't Run	Disable the battle event.
End of Turn	Run when all enemies and allies have finished their actions on a turn.
Turn	The battle event will activate on the designated turns, which are calculated using A+B*X. For example, if A=1 and B=3, the condition will be met on turns 1, 4, 7, etc. If A=0, the event will activate before any commands are entered.
Enemy HP	The battle event activates when the selected enemy's HP is at or below the designated amount.
Actor HP	The battle event activates when the selected actor's HP is at or below the designated amount.
Switches	The battle event activates when the designated switch is ON.



Span

Set how often the battle event can activate.

Span			"Battle" will only activate once per battle, "Turn" will only activate once per turn, and "Moment" will activate repeatedly as long as the conditions are fulfilled.
